Safe Rooms and The Active Shooter Threat (Part II)

By Craig S. Gundry, PSP, cATO, CHS-III

Part One of this article  discussed the importance of safe rooms in active shooter planning, physical security principles related to safe room design, and threat characteristics. Part Two, as follows, continues with an exploration of standards and references with potential use in specifying safe room barriers.

Safe Room Barrier Design and Construction

Forced Entry Standards and References

The key performance measure of a safe room barrier is its delay time as determined by adversary tools and methods. Ideally, all barriers defining the safe room as an independent protective layer (e.g., doors, glazing, locks, etc.) should be designed using the principles of balanced protection and provide delay as required to meet the system performance goal. Like a chain whose strength is defined by its weakest link, a safe room (or any protective layer) is only as effective as its weakest barrier or most easily exploited bypass.

For many types of barriers (e.g., reinforced concrete walls, glass glazing, etc.), delay time against some entry methods can be estimated by referencing testing data as published in Sandia National Laboratories’ Barrier Technology Handbook.[i] In the late 1970’s, Sandia collated penetration test data about different barrier types and construction variations to serve as a standard reference for security planners in the U.S. Government community. To this day, the Barrier Technology Handbook remains the “gold standard” reference for delay time data regarding many barrier types.

Although Sandia’s Barrier Technology Handbook is a useful reference, there are many barrier types and construction variations common today in commercial and academic facilities that were not tested or documented at the time of publication. Additionally, many methods of entry documented by Sandia have limited application in protecting against an adversary using a firearm as an aid in barrier penetration. For example, Sandia cites the mean delay time for penetrating 1/8″ tempered glass with a blunt tool (hammer) as 0.5 minutes.[ii] In penetration tests our company conducted of tempered glass windows using several shots from a 5.56mm rifle to penetrate glazing prior to impact by hand, delay time was only 10 seconds.[iii]

In the absence of reliable delay time data for many barrier types, security planners often need to rely on performance standards and ratings developed by organizations such as ANSI, ASTM, UL, CEN, and others. The best standards for specifying manufactured barrier products in a performance-based physical security design are those that most closely replicate the methods and tools likely to be employed by the defined threat and rate products based on delay time performance.

Several specification standards encompass impact testing and employ delay time performance as the primary basis for rating doors, glazing, and wall systems. Some of these standards include the U.S. State Department’s SD-STD-01.01, ASTM F3038-14, CPNI Manual Forced Entry Standard (MFES), and LPS 1175. [iv][v][vi][vii]

The SD-STD-01.01 test protocol is designed to replicate the conditions of a mob attempting to forcibly penetrate a barrier specimen. The protocol involves a series of ballistic tests against different parts of the specimen (shotgun, 5.56mm, and 7.62 NATO), and forced entry tests involving a team of aggressors conducting a series of attacks against the specimen at different parts with the use of various tools (e.g., ram, sledgehammer, saw, bolt cutters, pry bar, chisel and hammer, etc.). The tools and number of active test personnel varies based on time of test. Specimens are rated according to their timed forced entry-resistance against three attack levels: Five minutes (two test personnel), Fifteen minutes (six test personnel and larger range of tools), or Sixty minutes (six test personnel and greatest range of tools).

The ASTM F3038-14 testing protocol is structured similarly to SD-STD-01.01, but with some differences regarding number of attackers, ballistic resistance testing, and rating scale levels. ASTM’s testing approach involves six persons conducting a series of aggressive attacks against the barrier specimen with the use of various tools (e.g., ram, sledgehammer, saw, bolt cutters, pry bar, chisel and hammer, etc.). Different parts of the barrier are subjected to independent timed tests. When an opening large enough for test shape is breached and the object is passed through, the test is concluded.  Specimens are rated according to their timed forced entry-resistance against four levels of attack: Five minutes, Fifteen minutes, Thirty minutes, or Sixty minutes.

In the United Kingdom, CPNI’s Manual Forced Entry Standard (MFES) uses delay time against forced penetration as the basis for assigning performance ratings. The CPNI standard defines three levels of adversary (Novice, Knowledgeable, and Expert) in alignment with three threat levels (BASE, ENHANCED, and HIGH). Testing under each threat level involves two attackers, and each adversary category defines specific capabilities (e.g., tool sets, skill and experience, product knowledge, etc.). MFES resistance time classifications are defined by describing the threat level and delay time performance in increments from 0-20 minutes.

The UK’s LPS 1175 also uses delay time as the basis for designating Security Ratings for barrier products including doors, windows, etc. Tests involve a single adversary and eight tool categories (A, B, C, D, D+, E, F, G), including a diverse range of impact, prying, and power tools. Each category references an adversary tactic, skill, tool set, desire to remain covert or overt, and motivation. Warrington Certification’s STS 202 is another standard in the U.K. encompassing similar test protocols and a delay time rating scheme.[viii]

Unfortunately, all of the aforementioned standards (SD-STD-01.01, ASTM F3038-14, CPNI MFES, LPS 1175, and STS 202) encompass tests with tools unlikely to be encountered in armed assaults (e.g., sledgehammers, chisels, pry bars, power tools, etc.). Also, the number of test personnel used in SD-STD-01.01 (at higher levels) and ASTM F3038-14 is much greater than realistically expected in armed attacks in Europe or North America. For standards such as these, choosing a barrier by simply matching delay time ratings to literal delay time goals may result in overkill for situations where protection against armed attacks is the principal objective. Although there is nothing wrong with conservative specification when the risk level is high or funds permit, many organizations with limited budgets may be wasting money that could be applied elsewhere.

Other standards employ pass/fail tests as the basis for rating. One example is ASTM F1233-08 (Standard Test Method for Security Glazing Materials and Systems), a common standard for defining requirements against forced entry in the United States.[ix] The ASTM F1233-08 protocol has a ballistic testing component and separate tests for forced entry protection using different tools based on five resistance classifications. Although the ASTM F1233-08 standard has merits for certain applications and includes a test procedure for ballistic resistance, the tool sets and sequence of tests defined in ASTM F1233-08 do not realistically replicate the methods of entry and tools likely to be employed by armed attackers in live assaults.

Another American standard, UL 972 (Burglary-Resisting Glazing Material) uses dynamic load testing to simulate burglary attempts by the use of blunt object impact.[x] The UL 972 standard employs two separate procedures for High Impact Testing and Multiple Impact Testing. Both test procedures employ a 5 lb (2.3 kg) steel ball dropped at different heights (single impact at 40 feet and five impacts at 10 feet). UL 972 is not optimal for specifying protection against forced entry in active shooter attacks. First, the testing procedure in UL 972 does not consider the potential fragility of a glass specimen after first being penetrated by firearm projectile. Additionally, dynamic load testing does not provide useful delay time data necessary for determining the effectiveness of a safe room as one of several protective layers in an overall physical protection system (PPS) design. Quantitative performance-based PPS analysis tools, such as the Estimate of Adversary Sequence Interruption (EASI) model, require delay time input values that cannot be inferred from UL 972’s pass/fail type tests.[xi]

EN 1627 and related standards EN 1628, EN 1629, and EN 1630 are commonly used in Europe and elsewhere to specify protective requirements for doors, windows, and similar barriers.[xii][xiii][xiv][xv] Tests performed under these standards include pendulum impactor strikes at various points to simulate a forced entry by kicking or blunt object impact (EN 1629), static load imparted by a mechanically-operated pressure pad system (EN 1628), and timed forced entry using various tools (EN 1630). Specimens are rated into one of six resistance classes based on overall performance against dynamic and static load tests and timed tool tests (e.g., cylinder extraction, cylinder twisting, etc.). Each resistance class relates to an anticipated threat (burglar, tools, and tactics) as defined in EN 1627. Unfortunately, as described previously regarding UL 972, dynamic and static load testing is not useful in a security design based on delay time objectives or collective PPS performance. Additionally, the tool sets defined in EN 1630 are also mostly burglary tools irrelevant during active shooter attacks.

EN 356 is another CEN standard related to vulnerability of glazing systems against forced entry methods.[xvi] EN 356 uses a dropped impactor (4.11 kg steel sphere) and separate testing with a mechanically-operated fire axe to simulate burglary methods. Resistance against impact energy (based on height of impactor drop) and number of axe strikes determines the category of resistance. In the author’s opinion, EN 356 is also a suboptimal standard for defining protective requirements in safe room design for similar reasons mentioned in reference to EN 1627-1630 (e.g., tool sets, dynamic load resistance versus delay time, etc.).

Two related standards regarding mechanical locks with application in defining requirements for active shooter protection are ANSI/BHMA A156.2 (Bored and Preassembled Locks and Latches) and ANSI/BHMA A156.13 (Mortise Locks and Latches).[xvii][xviii] The ANSI/BHMA test procedures are designed to certify the durability, function, and strength of mechanical locks and latches against a series of static force and torque tests. Lock sets are classified into three grades (Grade 1-3) according to performance on all tests. Outside the United States, EN 12209 includes many of the same types of tests. Although ANSI/BHMA A156 and EN 12209 do not employ delay time as a basis for rating, they are some of the few standards that specifically evaluate door locksets against physical force. Most other standards related to security of mechanical locks (e.g., UL 437, EN 1303, etc.) evaluate performance against tool-aided methods of entry applicable to burglary (e.g., picking, impressioning, drilling, extraction, etc .) but unlikely to be used in armed assaults.

Some additional standards with potential application in specifying barrier products for use against forced entry in safe room designs include:

    • ASTM F2322 – Physical Assault on Fixed Horizontal Barriers for Detention and Correctional Facilities
    • ASTM F426 – Standard Test Method for Security of Swinging Door Assemblies
    • ASTM F1915 – Standard Test Methods for Glazing for Detention Facilities
    • ASTM F1450 – Standard Test Methods for Hollow Metal Swinging Door Assemblies for Detention and Correctional Facilities

Ballistic Protection References and Standards

The most useful reference for specifying design and construction of bullet-resistant structural walls is U.S. Department of Defense UFC 4-023-07 (Design to Resist Direct Fire Weapons Effects).[xix] UFC 4-023-07 Table 5-3 provides guidance on the construction of structural barriers to resist four levels of ballistic threat. If a safe room designer uses 7.62x51mm NATO ammunition (or lesser caliber such as 5.56mm or 7.62x39mm) as the defined threat caliber, requirements would be defined by the ‘MEDIUM’ threat level category.[xx]

UFC 4-023-07 also provides specifications on the minimum thickness of bullet-resistant fiberglass materials. However, a more reliable approach is to reference the performance data of specific fiberglass products as tested in accordance with industry standards.

Manufactured bullet-resistant products (e.g., doors, glazing, fiberglass panels, armor products, etc.) are normally tested and rated in accordance with several standards including UL 752, ASTM F1233-08, EN 1063, EN 1522, NIJ Standard-0101.06, and SD-STD-01.01.

In the United States, the two most common standards for specifying bullet-resistant building products are UL 752 and ASTM F1233-08. [xxi][xxii]

UL 752 describes grades of ballistic resistance using ten levels encompassing weapon calibers ranging from 9mm handgun up to .50 caliber rifle plus an additional level for 12 gauge shotgun. The ammunition and number of shots the specimen resists (1, 3, or 5 shots) defines the Class Threat Level of the product. Under the UL 752 rating system, adequate specifications for protection against military small arms would define UL 752 Level 7 (5.56mm x 5 shots), Level 8 (7.62x51mm x 5 shots), or Level 9 (.30 caliber armor-piercing x 1 shot).

ASTM F1233-08 uses a scale of eleven Classes/Levels to describe the ballistic resistance of glazing systems. Under the ASTM F1233 rating system, specimens must successfully resist penetration by one or three shots from defined weapon calibers ranging from .38 cal up to .30-06 armor piercing ammunition and 12 gauge shotgun. Under the ASTM F1233 rating system­, specifications for protection against military small arms would define F1233 R1 (5.56mm x 3 shots), F1233 R3 (.308 Win./7.62x51mm x 3 shots), or F1233 R4-AP (.30-06 M2-AP x 1 shot).

In the U.S., bullet-resistant body and vehicle armor are normally tested and classified according to NIJ Standard-0101.06.[xxiii] The NIJ standard uses a six level type classification system to define protection levels. For classification under Types I through III, specimens must resist penetration by five shots according to the standard’s test procedure. Type IV armor products must resist a single shot by .30-06 armor-piercing ammunition. Although NIJ Standard-0101.06 is primarily designed for testing body armor, manufacturers of bullet-resistant building materials often test their products according to the NIJ standard in addition to others. If a security planner uses NIJ Standard-0101.06 for defining protection against military small arms, specifications should state a product classified as Type III (7.62mm x 5 shots) or Type IV.

All products rated under the U.S. Department of State standard SD-STD-01.01 have been tested against penetration by military small arms and shotguns.[xxiv] The SD-STD-01.01 test procedure involves a minimum of nine shots by 5.56mm, 7.62x51mm, and 12 gauge buckshot in sequence against different target locations.

Outside North America, EN 1063 is one of the most common standards for rating bullet-resistant materials.[xxv] EN 1063 uses a seven-tiered scale to define ballistic protection from projectile weapons (BR classes) ranging from .22 cal. long rifle to 7.62x51mm hardcore ammunition and two additional levels to define protection against shotguns (SG class). Specimens rated under EN 1063 must resist penetration by three shots according to the standard’s test requirements. Under EN 1063, adequate specifications for protection against military small arms are BR5 (5.56mm), BR6 (7.62x51mm), or BR7 (7.62x51mm hard core).

Another European ballistic resistance standard is EN 1522  for windows, doors, shutters and blinds.[xxvi] EN 1522 uses a seven level classification system to describe ballistic resistance by calibers ranging from .22 cal. long rifle to 7.62x51mm hardcore ammunition, and one additional level for 12/70 shotgun. The procedure described in EN 1522 requires that the specimen is subjected to three shots at various target points which are determined based upon the type of product under evaluation. For the purposes of specifying protection against military small arms, appropriate EN 1522 ratings include FB5 (5.56mm), FB6 (5.56mm and 7.62x51mm), and FB7 (7.62x51mm hard core).

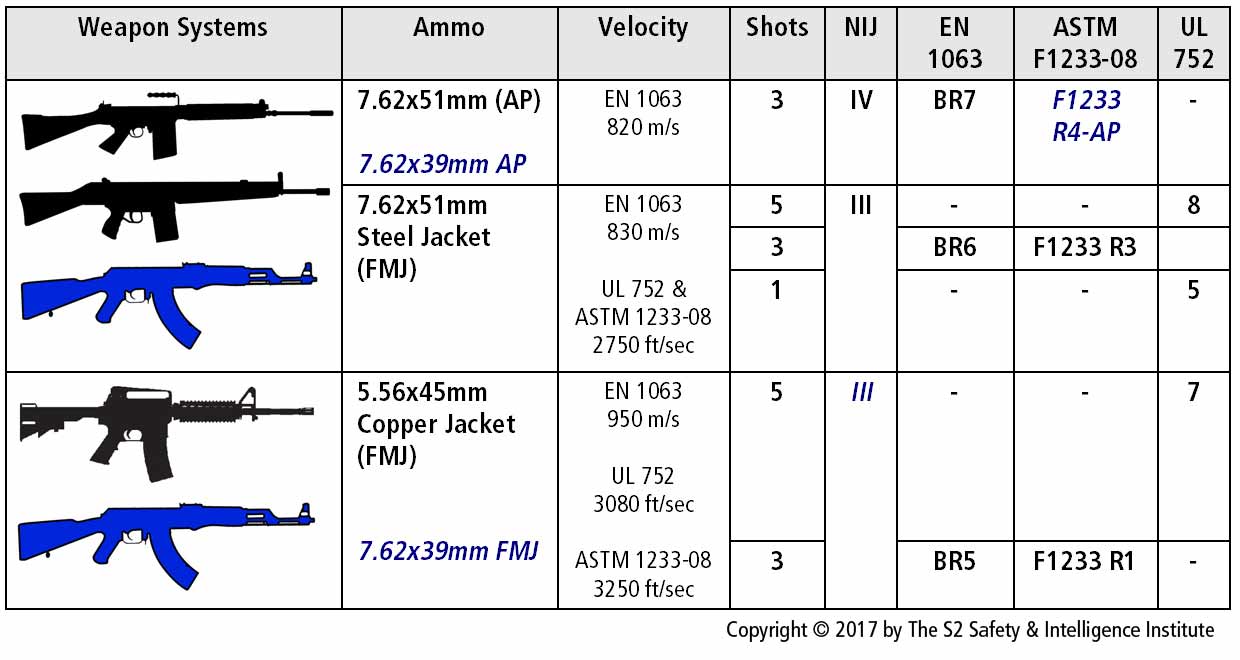

The following table compares several common ballistic resistance standards and ratings applicable for protection against military small arms.

Ballistic Standards Chart

Other standards with potential use in specifying ballistic protection requirements in safe room design include:

    • NATO AEP-55 STANAG 4569
    • AS/NZS 2343:1997 Standard

Hold up for a moment…We mentioned 5.56mm, 7.62x51mm (NATO), .30-06 cal, and shotgun, but what about the most popular weapon used by terrorists worldwide–the Kalashnikov (7.62x39mm)?

With the exception of NATO’s STANAG 4569 and provisions for specially testing 7.62x39mm in European standards (e.g., EN 1522, etc.), none of the common standards for bullet-resistant products specifically addresses 7.62x39mm as a test caliber. It is safe to assume products successfully rated for protection against 7.62x51mm will be effective in stopping 7.62x39mm. It is well established that 7.62x51mm has better penetration capability than 7.62x39mm. Therefore, any product rated as/or greater than UL 752 Level 8, ASTM F1233 R3, NIJ Type III, EN 1063 BR6, or EN 1522 FB6 will be adequate for protection against 7.62x39mm weapons.

Many product manufacturers also claim that EN 1063 BR5 and UL 752 Level 7 are effective in resisting 7.62x39mm ball ammunition. Although there are significant differences in the ballistic properties of 5.56x45mm and 7.62x39mm ammunition, there are sources which indicate similar penetration capabilities.[xxvii] However, I recommend requesting documented proof from manufacturers of successful 7.62x39mm testing for EN 1063 BR5 and UL 752 Level 7 products before relying on these rating levels.

Part Three of this article surveys building material components appropriate for safe room construction.

Continued in Part III

Share on facebook
Facebook
Share on twitter
Twitter
Share on linkedin
LinkedIn
Share on email
Email

References

[i] Barrier Technology Handbook, SAND77-0777. Sandia Laboratories, 1978.

[ii] Ibid, pp. 16.3-39.

[iii] Critical Intervention Services assisted a window film manufacturer in 2015 in conducting a series of timed penetration tests of unprotected tempered glass windows and glazing reinforced with anti-shatter film. A marketing video produced by the manufacturer displaying a few of these tests is available online: http://www.solargard.com/school-safety/

[iv] SD-STD-01.01, Revision G. Certification Standard. Forced Entry and Ballistic Resistance of Structural Systems. U.S. Department of State, Bureau of Diplomatic Security, Washington, DC, 1993.

[v] ASTM F3038-14, Standard Test Method for Timed Evaluation of Forced-Entry-Resistant Systems, ASTM International, West Conshohocken, PA, 2014

[vi] Manual Forced Entry Standard (MFES) Version 1.0. Centre for the Protection of National Infrastructure (CPNI), N.p.: 2015.

[vii] LPS 1175: Issue 7.2., Requirements and testing procedures for the LPCB approval and listing of intruder resistant building components, strongpoints, security enclosures and free standing  barriers, Loss Prevention Certification Board, Watford, 2014.

[viii] STS 202, Requirements for burglary resistance of construction products including hinged, pivoted, folding or sliding doorsets, windows, curtain walling, security grilles, garage doors and shutters. Warrington Certification Limited, N.p. 2016.

[ix] ASTM F1233-08, Standard Test Method for Security Glazing Materials and Systems. ASTM International, West Conshohocken, PA, 2013.

[x] UL 972, Standard for Burglary Resisting Glazing Material. UL, N.p.: 2006.

[xi] Garcia, Mary Lynn. Vulnerability Assessment of Physical Protection Systems. Elsevier Butterworth-Heinemann, Burlington, MA, 2006.

[xii] EN 1627:2011, Pedestrian doorsets, windows, curtain walling, grilles and shutters. Burglar resistance. Requirements and classification. Brussels: European Committee for Standardization, 2011.

[xiii] EN 1628:2011, Pedestrian doorsets, windows, curtain walling, grilles and shutters. Burglar resistance. Test method for the determination of resistance under static loading. European Committee for Standardization, Brussels, 2011.

[xiv] EN 1629:2011, Pedestrian doorsets, windows, curtain walling, grilles and shutters. Burglar resistance. Test method for the determination of resistance under dynamic loading. European Committee for Standardization, Brussels, 2011.

[xv] EN 1630:2011, Pedestrian doorsets, windows, curtain walling, grilles and shutters. Burglar resistance. Test method for the determination of resistance to manual burglary attempts. European Committee for Standardization, Brussels, 2011.

[xvi] Glass in building. Security glazing. Testing and classification of resistance against manual attack, EN 356:2000. Brussels: European Committee for Standardization, 2000.

[xvii] ANSI/BHMA A156.2, Bored & Preassembled Locks and Latches. Builders Hardware Manufacturers Association (BHMA), New York, NY, 2011.

[xviii] ANSI/BHMA A156.13, Mortise Locks and Latches. Builders Hardware Manufacturers Association (BHMA), New York, NY, 2011.

[xix] UFC 4-023-07, Design To Resist Direct Fire Weapons Effects. US Department of Defense, N.p.: 2008.

[xx] Ibid. pp. 2-1

[xxi] UL 752, Standard for Bullet-Resisting Equipment. UL, N.p.: 2005.

[xxii] ASTM F3038-14, Standard Test Method for Timed Evaluation of Forced-Entry-Resistant Systems, ASTM International, West Conshohocken, PA, 2014

[xxiii] NIJ Standard-0101.06, Ballistic Resistance of Body Armor. U.S. Department of Justice, Office of Justice Programs, National Institute of Justice, Washington, DC, 2008.

[xxiv] SD-STD-01.01, Revision G. Certification Standard. Forced Entry and Ballistic Resistance of Structural Systems. U.S. Department of State, Bureau of Diplomatic Security, Washington, DC, 1993.

[xxv] EN 1063:2000, Glass in building – Security glazing – Testing and classification of resistance against bullet attack. European Committee for Standardization, Brussels, 2000.

[xxvi] EN 1522:1999, Windows, doors, shutters and blinds. Bullet resistance. Requirements and classification. European Committee for Standardization, Brussels, 1999.

[xxvii] “5.56×45 versus 7.62×39 – Cartridge Comparison.” SWGGUN. SWGGUN, N.p. https://www.swggun.org/5-56-vs-7-62/. Accessed 22 Sept. 2017.
